CSD17308Q3T
Manufacturer:
Texas Instruments
Mfr.Part #:
CSD17308Q3T
Datasheet:
Description:

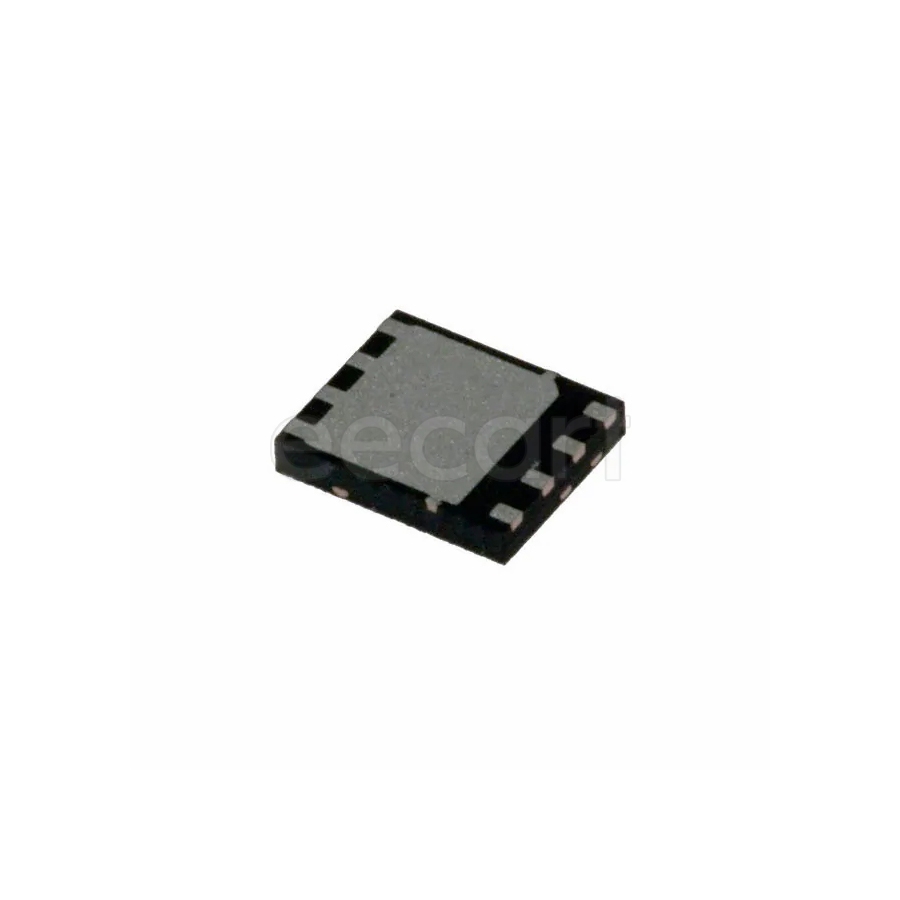

MOSFETs VSON-8 SMD/SMT N-Channel number of channels:1 2.7 W 30 V Continuous Drain Current (ID):44 A 3.9 nC
| Parameter | Value |
|---|---|
| Length | 3.3 mm |
| Width | 3.3 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 8 |
| Height | 1.1 mm |
| Packaging | Reel |
| Thickness | 1 mm |
| Lead Free | Contains Lead |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Power Dissipation | 2.7 W |
| Power Dissipation | 2.7 W |
| Threshold Voltage | 1.3 V |
| Number of Channels | 1 |
| Input capacitance | 700 pF |
| Continuous Drain Current (ID) | 44 A |
| Rds On Max | 10.3 mΩ |
| Drain to Source Voltage (Vdss) | 30 V |
| FET Type(Transistor Polarity) | N-Channel |
| Turn-On Delay Time | 4.5 ns |
| Turn-Off Delay Time | 9.9 ns |
| Element Configuration | Single |
| Gate Charge | 3.9 nC |
| Drain to Source Resistance | 8.2 mΩ |
| Max Junction Temperature (Tj) | 150 °C |
| Gate to Source Voltage (Vgs) | -10 V, 10 V |
| Drain to Source Breakdown Voltage (Vds) | 30 V |
| Schedule B | 8541290080 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Gate to Source Threshold Voltage | 1.3 V |
Stock: 263
Distributors
pcbx
pcbxUnit Price$1.06353
Ext.Price$1.06353
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.06353 | $1.06353 |
| 10 | $0.67625 | $6.76250 |
| 25 | $0.59027 | $14.75675 |
| 50 | $0.51522 | $25.76100 |
| 100 | $0.44970 | $44.97000 |
| 300 | $0.39362 | $118.08600 |
| 500 | $0.34454 | $172.27000 |
| 1000 | $0.28384 | $283.84000 |
| 3000 | $0.27427 | $822.81000 |
| 5000 | $0.26503 | $1325.15000 |
| 10000 | $0.26076 | $2607.60000 |
